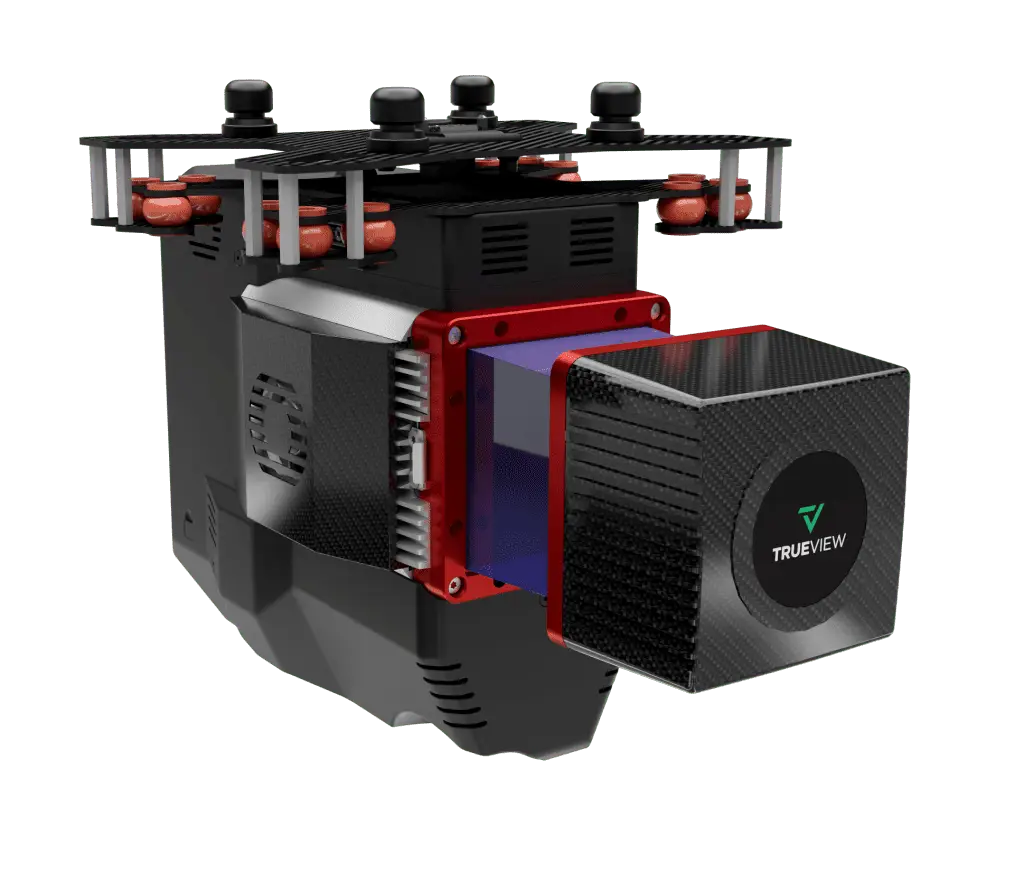

GeoCue TrueView 625

Affordable Excellence in Mapping

Based on the Riegl mini-VUX 1, similar to our TrueView 655/660, with triple cameras TrueView 625 is where price and performance meet. In addition, the TrueView 625, like all 600-series payloads, is NDAA-compliant. This is the most affordable high-end system combining ​high accuracy and precision in a budget friendly package.​

What's included

TrueView 625 3D LiDAR Payload

USB Thumbdrive

GNSS Antenna

Sensor Hardcase

Accuracy Star

SOFTWARE/DATA MANAGEMENT

LiDAR & photogrammetry 3D point cloud software

LP360 Drone Processing Software

The professional choice in geospatial data processing software, made in the U.S.A. since 2006.

Whether it’s airborne or terrestrial collected LIDAR data, 3D point clouds have become a critical element in mapping. LP360, an advanced desktop LIDAR software package, makes easy work of extracting information and generating deliverables in an intuitive GIS environment.

Includes Strip Align and Photo Add Ons

Specifications

Unveiling the Power and Performance Details

  • Data Collection LiDAR + Imagery
  • LiDAR Scanner RIEGL miniVUX-1UAV
  • LiDAR Beams/Returns Up to 5 per outgoing pulse
  • LiDAR Range - usable 100 m for targets with > 20% reflectivity​
  • Positioning and Orientation System Applanix APX-15 ​
  • Pulse Repetition Rate 100 kHz​
  • Accuracy Better than 3 cm, RMSE​
  • Precision Better than 2.5 cm at 1 σ ​
  • Camera Sensor 3 Sony IMX-183: 1”, 20 MP, RGB -> 60 MP per payload​
  • Mass 2.4 kg
