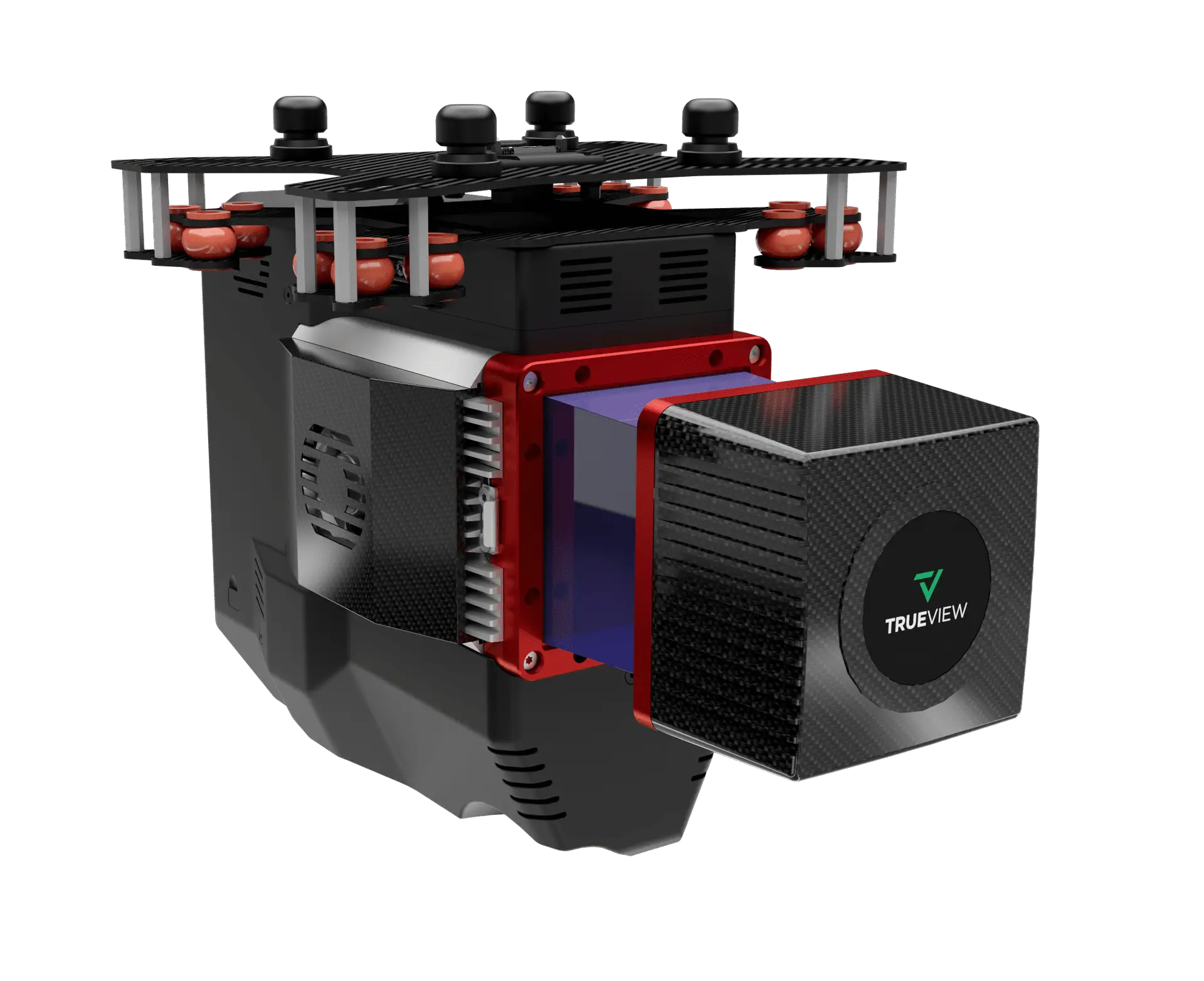

GeoCue TrueView 655/660

Empowering High-Accuracy Mapping for Unmatched Precision

The TrueView® 655/660 is GeoCue’s third generation RIEGL integration built with the miniVUX-3UAV and triple mapping cameras (right, left, nadir) for high accuracy mapping with excellent vegetation penetration and wire detection in a lightweight payload package. In addition, you can upgrade to high-resolution Sony RX1R2 or Sony a7r imaging camera for even higher performance.

What's included

TrueView 655/660 LiDAR Sensor Payload

USB Thumbdrive

GNSS Antenna

Sensor Hardcase

SOFTWARE/DATA MANAGEMENT

LiDAR & photogrammetry 3D point cloud software

LP360 Drone Processing Software

The professional choice in geospatial data processing software, made in the U.S.A. since 2006.

Whether it’s airborne or terrestrial collected LIDAR data, 3D point clouds have become a critical element in mapping. LP360, an advanced desktop LIDAR software package, makes easy work of extracting information and generating deliverables in an intuitive GIS environment.

Specifications

Unveiling the Power and Performance Details

  • Data Collection LiDAR + Imagery
  • LiDAR Scanner RIEGL miniVUX-3UAV
  • LiDAR Beams/Returns Up to 5 per outgoing pulse
  • LiDAR Range - usable 100 m for targets with > 20% reflectivity
  • Positioning and Orientation System (655) Applanix APX-15 | (660) Applanix APX-20
  • Pulse Repetition Rate Up to 300 kHz (selectable)*
  • Accuracy Better than 3 cm, RMSE
  • Precision (655) Better than 2.5 cm at 1 σ | (660) Better than 2 cm at 1 σ
  • Camera Sensor 3 Sony IMX-183: 1”, 20 MP, RGB -> 60 MP per payload ***Optional upgrade to high-resolution Sony RX1R2 or Sony a7r. Ask your salesperson for details.
  • Mass (655) 2.4 kg | (660) 2.6 kg (IMU-90) or 2.8 kg (IMU-82) (with standard 3 camera package)
