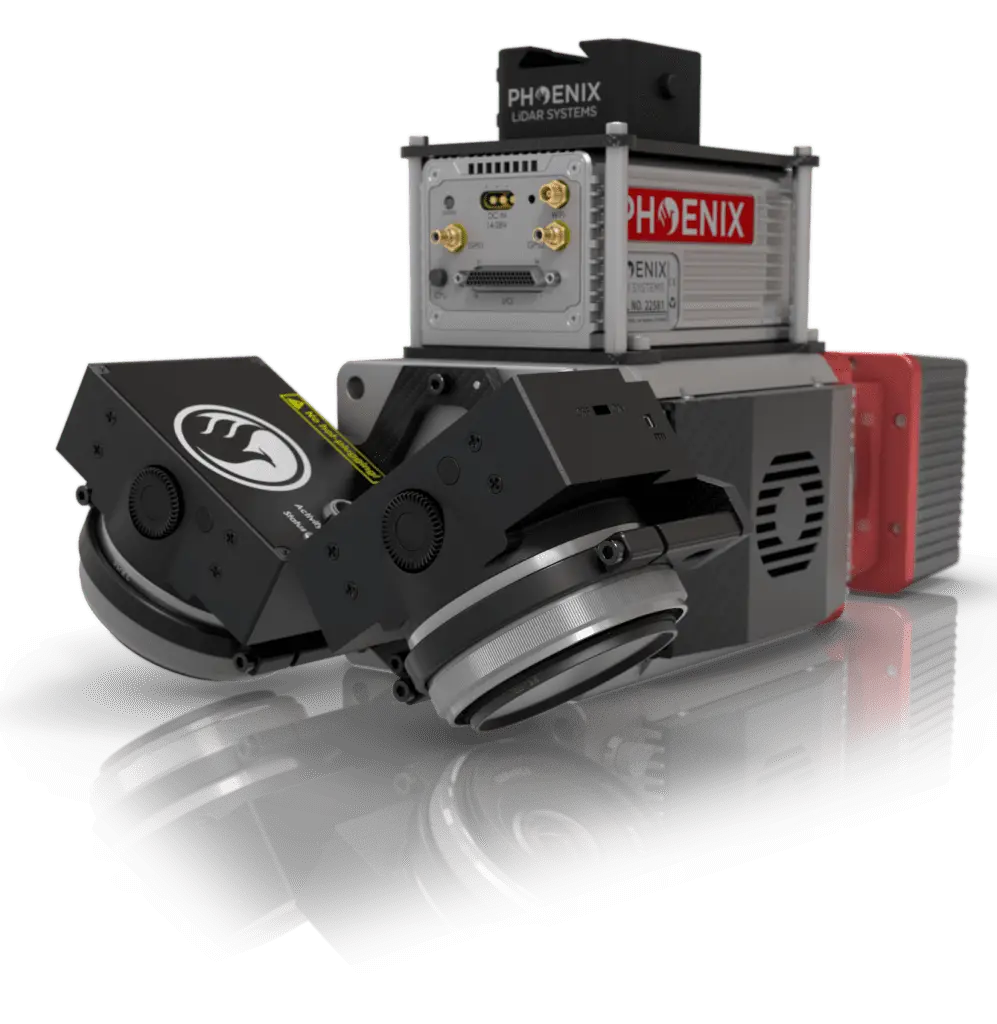

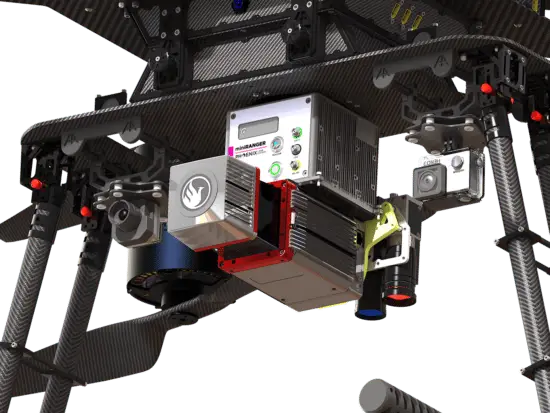

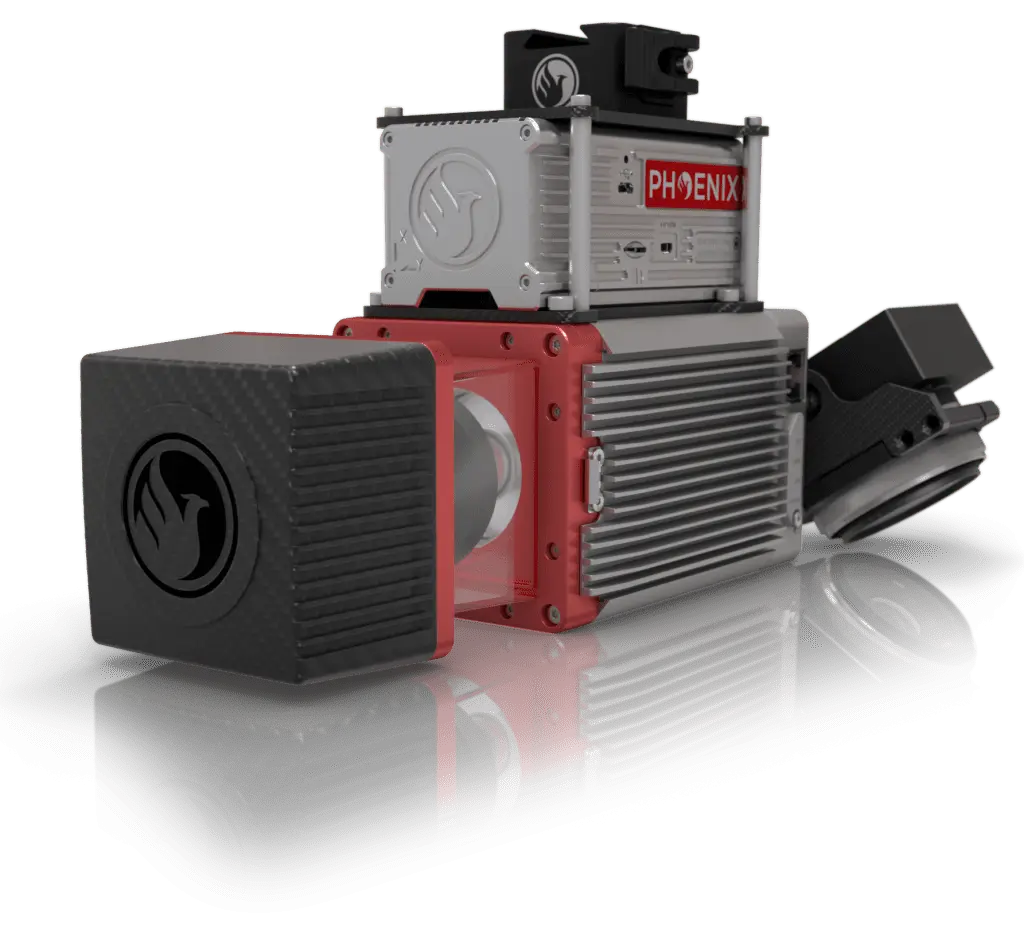

The miniRanger is the miniaturized version of Phoenix LiDAR’s full-sized ultra-high accuracy mapping solution. This extremely compact, aluminum encased system with a 360° field of view and modest operating power requirements will deliver up to five echoes, making it an ideal option for demanding UAS/UAVs applications. Operable at subzero temperatures down to -10° C makes this system exceptionally well suited for measuring snowy and icy terrain.
The NEW RANGER ULTRA includes Phoenix LiDAR System’s AIR NavBox. The newest generation, ultra-lightweight (450) rover will help
meet the rigorous demands of various industries and applications by greatly increasing flexibility in two key areas: reducing weight for longer flight times on unmanned vehicles; and higher range with the highest resolution cameras on the market.
The new Phoenix LiDAR AIR NavBox offers the most industry-altering capabilities in a tiny box not much bigger than a standard-size computer mouse.
58.5 x 123 x 48.1mm
450g
CONSTELLATION SUPPORT:
GPS, GLONASS
SUPPORT ALIGNMENT:
Static, Kinematic, Dual-Antenna
OPERATION MODES:
Real-time, Postprocessing
ACCURACY POSITION:
1cm + 1ppm RMS Horizontal
OVERALL DIMENSIONS (SENSOR):
269 x 99 x 85 mm STIM / 302 x 99 x 85 mm FOG
OVERALL DIMENTINOS (NAV BOX):
300 x 99 x 85 mm
OPERATION VOLTAGE:
12 – 28 V
POWER CONSUMPTION:
80 W
WEIGHT (INCL. SENSOR + CABLING):
3.5 kg (7.7 lb) FOG IMU / 2.9 kg (6.4 lb) STIM IMU
OPERATING TEMPERATURE:
-10° – +40° C

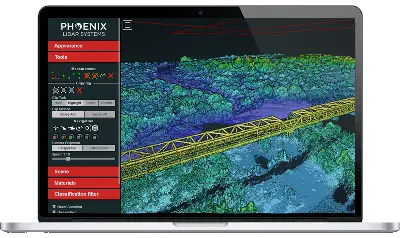

Phoenix LiDAR Systems provides a proprietary complete software suite for streamlined acquisition, geo-referencing, data fusion, export and post-processing in the cloud.
