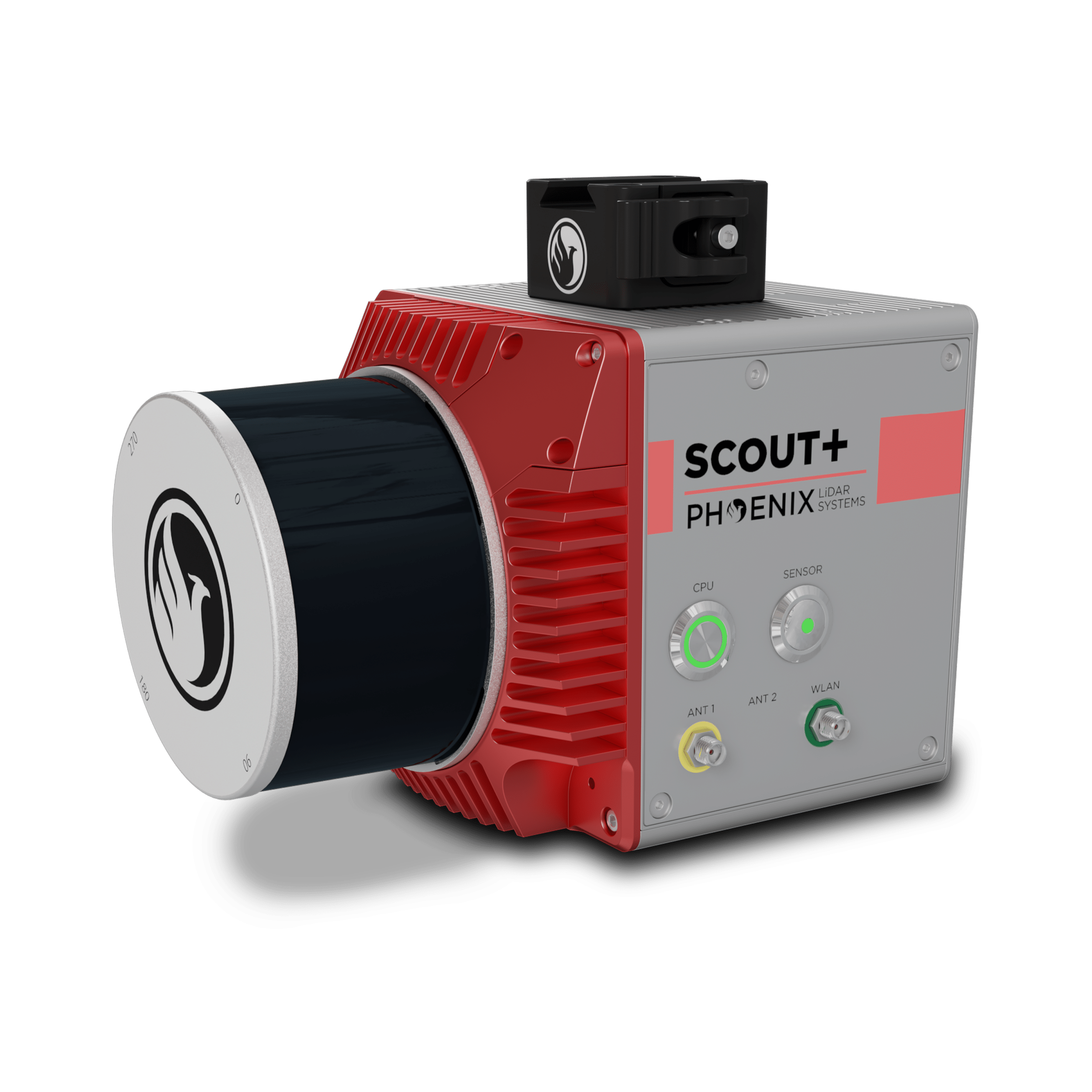

The SCOUT-M2X is the ideal combination of performance, flexibility and affordability. It brings a new level of precision and accuracy to the long trusted SCOUT lineup of multi channel mapping scanners.
Long range, high pulse rate and triple return capability allow for UAV acquisitions of more data faster through vegetation. Dense survey data can be collected by nearly any method; UAV, Mobile, Backpack, and more. The SCOUT-M2X is also SLAM capable, taking you where others cannot.
The newest generation, ultra-lightweight (450) rover will help meet the rigorous demands of various industries and applications by greatly increasing flexibility in two key areas: reducing weight for longer flight times on unmanned vehicles; and higher range with the highest resolution cameras on the market.
The new Phoenix LiDAR AIR NavBox offers the most industry-altering capabilities in a tiny box not much bigger than a standard-size computer mouse.
58.5 x 123 x 48.1mm
450g
CONSTELLATION SUPPORT:
GPS+GLONASS+BEIDOU +GALILEO
SUPPORT ALIGNMENT:
Kinematic, Dual-Antenna
ACCURACY POSITION:
1 cm + 1 ppm RMS horizontal
IMU GYRO IN-RUN BIAS STABILITY:
1.0°/hr to 0.5°/hr options
OVERALL DIMENSIONS (SENSOR):
17.7 x 11.6 x 12.3 cm
OPERATING VOLTAGE:
12-28 V
OPERATING TEMPERATURE:
-10° – +40° C
POWER CONSUMPTION:
~30 W
WEIGHT (WITHOUT CAMERA):
1.8 kg
Phoenix LiDAR Systems provides a proprietary complete software suite for streamlined acquisition, geo-referencing, data fusion, export and post-processing in the cloud.
